EE10 high frequency transformer

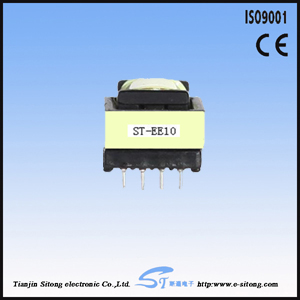

*EE10 photo:
vertical horizontal

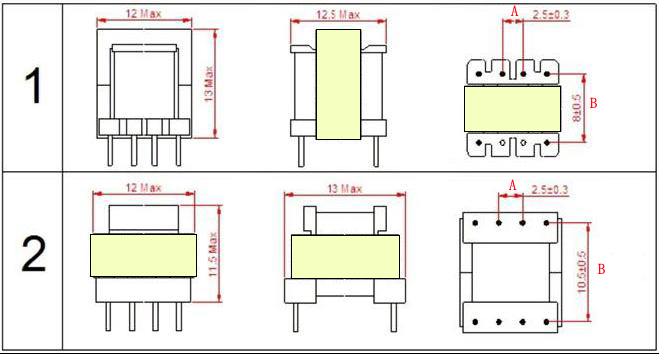

EE10 transformer size:
Part number | Drawing | Type | Shape | Pin | size | ||||
L | W | H | Stitch length | Array pitch | |||||
ST-EE1001 | 1 | EE10 | V | 4+4 | 12max | 12.5max | 13max | 2.5 | 8.0 |
ST-EE1002 | 2 | H | 4+4 | 12max | 13max | 11.5max | 2.5 | 10.5 | |
It is the commonly bobbin for our company in the sheet, other styles were not included, welcome consulting.The company can be customized according to customer's request all kinds of transformer.
* EE10 high-frequency transformer performance:
1. The working frequency: 20 KHZ to 300 KHZ
2. The output power: 0.5 to 5 W
3. The working temperature: - 40 ℃ to + 125 ℃
4. Storage temperature: 25 ℃ to + 85 ℃
5. Storage humidity: 30 to 95%
*The characteristics of EE10 high-frequency transformer
EE10 high-frequency transformer with a small size, low price, high transmission power, low loss, high working frequency, stable performance, etc.
*The application of EE10 high-frequency transformer
EE10 transformer is often used in mobile phone chargers, DC - DC converter, drive transformer, adapter, power supply, etc.
* EE10 high-frequency transformer price
EE10price is between USD0.1-0.23 , The price is depends on the product process complexity, the require of the raw materials, and whether to ask a safety certificate, etc.
* the high-frequency transformer winding:
* the packing of the high-frequency transformer
