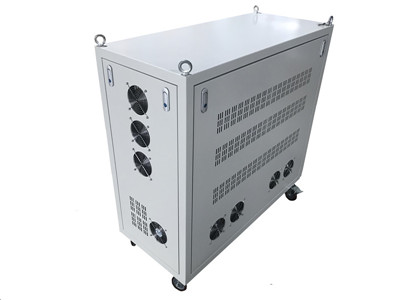

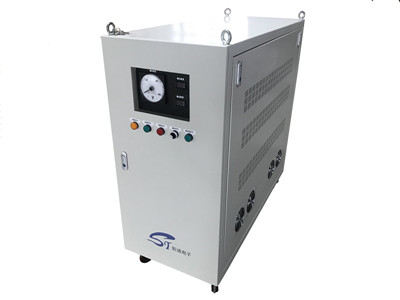

Silicon Controlled DC Power Supply
Output Specification: 240V 50A
Ripple factor: Output voltage harmonic total RMS component 2%
Any special requirement for DC power is available.
Compensation method: For avoid circuit voltage pressure goes down by transfer distance, STDC supply long distance compensation power, to make sure it has stable long distance voltage.
Mechanical Character: Install-moveable, case structure
Volume-as below chart
Cooling method: aluminum allay, air blast cooling
Model | STDC240 | |
Output Volume | 50A | |
Input | 380V 3φ4W 47Hz-63Hz | |
Output | Ripple factor | ＜2% |
Voltage display | Digital display/meter display | |
Current display | Meter display | |
Compensation method | Local compensation/far-end compensation | |
Overall effciency | 85%-92% | |
Apply environment | Temperature-20℃~45℃ humidity0~90% Non-coagulation state | |
Cooling method | Aluminum allay, air blast cooling | |
Volume（L*W*H）mm | 1130*500*1000 | |
Weight | 200KGS | |
Product Characteristics: Using Air France high speed chopper, without filter components, such as inductor, capacitor,etc. STDC has high-light LED screen, voltage resolution is 0.1V, current resolution is 0.1A; with insulation transformer structure, to make sure safety of electronically structure. Input has non-high-frequency rectification method, avoid losing control by high-frequency components were current-carrying, to make sure the safety characteristics which system could work on high current condition.
