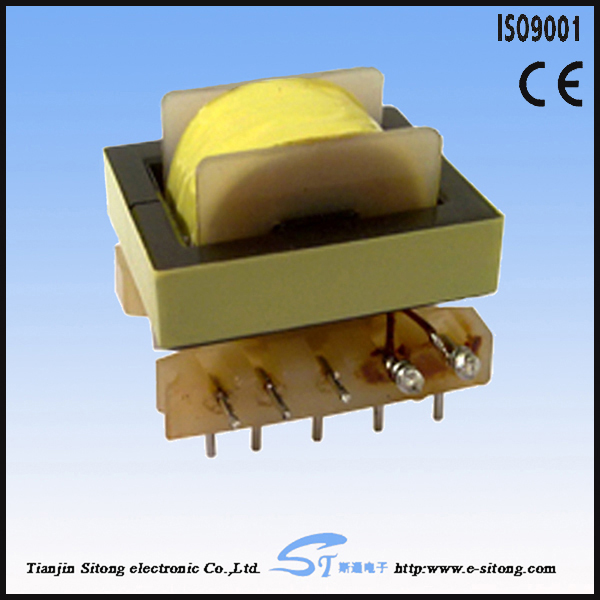

高频变压器
EE系列
卧 式 立 式
目 录
编 号 | 型 号 | 形式 | 针 | 尺寸 | ||||
L | W | H | 针距 | 排距 | ||||
ST-EE1001 | 立式 | 4+4 | 12max | 12.5max | 13max | 2.5 | 8.0 | |
ST-EE1002 | 卧式 | 4+4 | 12max | 13max | 11.5max | 2.5 | 10.5 | |
ST-EE1301 | 立式 | 3+3 | 14max | 13.5max | 13max | 3 | 9.0 | |
ST-EE1302 | 立式 | 5+5 | 14max | 13max | 14max | 2.5 | 8.5 | |
ST-EE1303 | 卧式 | 4+4 | 14max | 13max | 14max | 2.5 | 10.0 | |
ST-EE1601 | 立式 | 4+6 | 18max | 16.5max | 17.5max | 2.7/3.5 | 12.3 | |
ST-EE1602 | 立式 | 5+5 | 16.5max | 14max | 16max | 3.3 | 10.5 | |
ST-EE1603 | 立式 | 4+4 | 15.5max | 15.5max | 14max | 3.8 | 10.2 | |
ST-EE1604 | 卧式 | 4+4 | 15.5max | 14max | 14.5max | 3 | 13.6 | |
ST-EE1605 | 卧式 | 5+5 | 17max | 19max | 14.5max | 3.25 | 15.5 | |
ST-EE1901 | 立式 | 5+5 | 22.5max | 16.5max | 18max | 4 | 10 | |
ST-EE1902 | 立式 | 3+3 | 21max | 15max | 15.5max | 3.5 | 10 | |
ST-EE1903 | 立式 | 4+6 | 20max | 16.5max | 23max | 3.5/2.7 | 12.0 | |
ST-EE1904 | 立式 | 3+4 | 15max | 15max | 19max | 4 | 11.0 | |
ST-EE1905 | 卧式 | 4+4 | 20max | 18max | 17max | 3.8/5 | 12.5 | |
ST-EE1906 | 卧式 | 5+5 | 20max | 19max | 13.5max | 3 | 12.5 | |
ST-EE2201 | 立式 | 5+5 | 24max | 19max | 20.5max | 4 | 10.0 | |
ST-EE2202 | 卧式 | 4+4 | 24max | 19max | 14max | 4.25 | 13.0 | |
ST-EE2501 | 立式 | 5+5 | 26.5max | 21max | 23.5max | 5 | 15.0 | |
ST-EE2502 | 卧式 | 5+5 | 27max | 26.5max | 20.5max | 3.8/5.1 | 15.6 | |
ST-EE2503 | 卧式 | 4+4 | 27max | 21.5max | 18max | 4 | 15 | |
ST-EE2801 | 立式 | 5+5 | 30max | 24max | 24max | 5 | 17.5 | |
ST-EE2802 | 立式 | 8+8 | 32.5max | 27max | 26max | 4 | 20 | |
ST-EE3001 | 立式 | 5+5 | 31.5max | 23max | 28.8max | 5 | 17.6 | |
ST-EE3002 | 立式 | 6+6 | 31.5max | 27max | 30max | 5 | 20.0 | |
ST-EE3301 | 立式 | 6+6 | 35max | 30max | 32.5max | 5 | 22.5 | |
ST-EE3302 | 立式 | 7+7 | 36max | 30max | 32.5max | 5 | 22.5 | |
ST-EE3303 | 立式 | 8+8 | 40max | 30max | 32.5max | 5 | 22.5 | |
ST-EE3304 | 立式 | 9+9 | 45max | 30max | 32.5max | 5 | 22.5 | |
ST-EE3305 | 立式 | 17+17 | 48max | 29max | 35.5max | 2.54 | 20.5 | |
ST-EE3501 | 立式 | 6+6 | 36.5max | 30max | 32max | 5 | 20.0 | |
ST-EE3502 | 立式 | 7+7 | 36.5max | 30max | 32.5max | 5 | 22.5 | |
ST-EE4001 | 立式 | 6+6 | 42.0max | 29max | 38.5max | 5 | 22.5 | |
ST-EE4002 | 立式 | 8+8 | 42.0max | 29max | 38.5max | 5 | 22.5 | |
ST-EE4003 | 卧式 | 6+6 | 41.5max | 36max | 32.5max | 5 | 27.0 | |
ST-EE4004 | 卧式 | 7+7 | 41.5max | 36max | 27.5max | 5 | 25.8 | |
ST-EE4101 | 卧式 | 6+6 | 41.2max | 37max | 30max | 5.1/6.3 | 24.5 | |
ST-EE4201 | 立式 | 6+6 | 43.5max | 40max | 45max | 5 | 32.5 | |
ST-EE4202 | 立式 | 8+8 | 46.5max | 33max | 47max | 5 | 28.0 | |
ST-EE4203 | 立式 | 9+9 | 46.5max | 38max | 48max | 5 | 27.5 | |
ST-EE4204 | 卧式 | 5+5 | 47max | 44max | 34.5max | 5 | 34.7 | |
ST-EE4205 | 卧式 | 6+6 | 43max | 44max | 40max | 7.4 | 33.0 | |
ST-EE4206 | 卧式 | 8+8 | 43.5max | 44max | 40max | 5 | 34.5 | |
ST-EE5001 | 卧式 | 7+7 | 52max | 44max | 50max | 6/7 | 27.0 | |
ST-EE5002 | 卧式 | 7+7 | 52max | 44max | 55max | 6/7 | 27.0 | |
ST-EE5003 | 卧式 | 7+7 | 52max | 44max | 65max | 6/7 | 27.0 | |
ST-EE5501 | 立式 | 7+7 | 44max | 57max | 53max | 5 | 39.4 | |
ST-EE5502 | 卧式 | 7+7 | 57max | 57max | 44max | 5 | 40.0 | |
ST-EE5503 | 卧式 | 10+10 | 57max | 57max | 52max | 5 | 45.0 | |
ST-EE5504 | 卧式 | 10+10 | 57max | 57max | 70max | 5 | 45.0 | |
ST-EE5505 | 卧式 | 11+11 | 57max | 57max | 41max | 5 | 40.0 | |
ST-EE5506 | 立式 | 无针 | 56max | 50max | 58max | 6 | 0 | |
